Process Review: Dressing the Drawloom the Second Time

Dressing the drawloom the second time is easier than the first time. No slip ups or confusion. Just smoothly moving from one step to the next. (Read to the end to see what to expect for July.)

Winding skeins of wool yarn into balls.
Winding skeins of wool yarn into balls.

With my first drawloom warp the most challenging part was distributing the pattern shafts. (See Q and A with Joanne Hall and Drawloom Dressing.) This time something clicked and the light bulb turned on. Instead of blindly following steps, I now understand what I am doing, and why. And I am having fun in the process!

Winding warp on the warping reel.
Winding the warp on the warping reel, making two bouts.
Big fat wool warp chains.
Warp chains of 6/2 Tuna wool, ready to dress the loom.
Ready to thread pattern heddles.
After beaming the warp, the loom bench is moved to the back of the loom for threading heddles. Pattern heddles first, and then, ground heddles.
Sleying the reed on the drawloom.
With the reed sleyed, it’s time to return the ground shafts to the front of the loom and put the reed in the beater.
Leveling string is doing its job!
Warp is tied on, and the leveling string is doing its job.
Distributing pattern shafts on the drawloom.
Inkle band serves to separate pattern heddles as I distribute the pattern shafts.

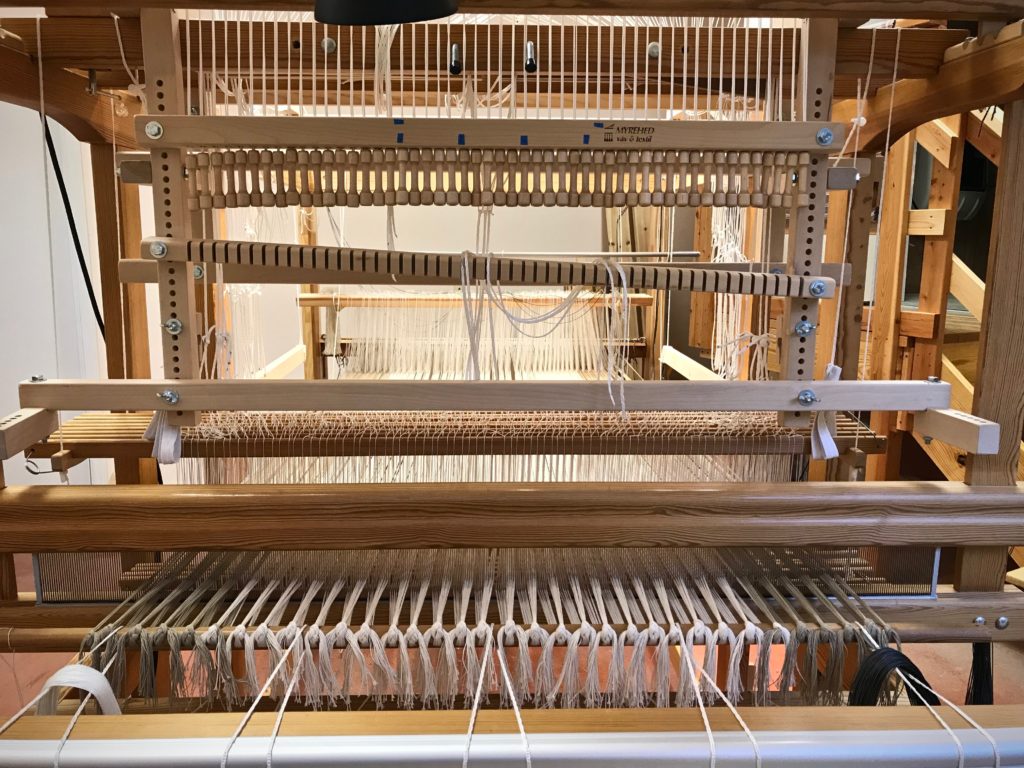

Adding pattern shafts to the drawloom.
Pattern shafts are resting nicely on the pattern shaft holders. Their little hooks grab the Texsolv that connects them to the draw cords and handles.
Dressing the drawloom!
Pointed threading can be seen in the arrangement of the heddles on the pattern shafts.
Dressing the drawloom!
Drawloom setup is complete except for tying up the treadles. Treadle tie-ups on a drawloom are refreshingly simple.
Testing pattern sheds on the drawloom.
Testing pattern sheds by pulling some of the draw handles. After a few small adjustments, she’s ready to weave!
Wool on the drawloom.
First sample. 6/2 Tuna wool warp and weft, 4-shaft broken twill on the ground shafts, sett is 5.5 ends per cm, 16 pattern shafts with 1 extra shaft for the edges.

Friends, It’s that time again, when Warped for Good is put on pause for the month of July.

Thank you for sharing in this journey with me!

What’s on my looms: I am near the end of the blue double weave blanket on the Standard, and I am planning a new pictorial tapestry for that loom. The drawloom is dressed and in motion. And the Ideal loom is still sitting ready for rosepath rag rugs. Also, Steve and I have a Casita trip planned that will include some leisurely backstrap band weaving.

What’s on your loom right now? Share with us in the comments.

See you the first Tuesday of August! (In the meantime catch me over on Instagram @celloweaver.)

May your second times be better than your first times.

Keep on Weaving,
Karen

13 Comments

  • Beth Mullins says:

    Love the drawloom project! I’m getting ready to dress my loom for retro-inspired kitchen towels. Enjoy July!

  • Nannette says:

    Enjoy your July.

    I will be picking currants and black raspberries out of my backyard to sell at the farmer’s market.

    The weaving on the drawloom looks so warm. Ready for the autumn.

    Blessings

    • Karen says:

      Hi Nannette, I have fond childhood memories of picking black raspberries in our backyard, and eating them! Yum!

      If all goes as planned, I will finish the drawloom weaving in time to make a simple vest that I can wear this autumn. …we’ll see.

      All the best,
      Karen

  • Charlotte says:

    Good morning, my sweet! Weaving has been suddenly interrupted. Father’s Day – 15 minutes before the close of service – my heart began racing. No pain. It being Father’s Day, I thought I needed food. While at the restaurant, pulse 158. Wayne wanted to head to the ER…light ache in jaw. They stopped my heart and thankfully, it started on its own. 3 drugs later, I was finally in my sinus rhythm. Orders to lay low. Sleep studies. Waiting. Terrible drug reaction. Waiting. Today…sleep study in near future. Home sleep study last Thursday. Waiting. Love you and thankful I remain on this side of heaven. HE has given me a new ministry with Semper Fi Fund. We should talk! I love you!!!!!

    • Karen says:

      Oh Charlotte, You’ve been through a lot! Hopefully, weaving will be back in rhythm for you. I’m thankful you’ve been given a way to bless others in the Semper Fi project.

      I don’t want you to rush off to heaven when you still have a mission here!

      Love,
      Karen

  • Geri Rickard says:

    Hi Karen! My loom projects are a runner on the drawloom in 35/2 linen for warp snd 16/1 for weft. It’s on a 21 shaft setup. On the other standard loom I’m just starting an easy batch of M&O towels in 16/2 cotton. I’m enjoying seeing your drawloom progress! Enjoy your July!

    • Karen says:

      Hi Geri, Thanks for sharing! It’s great to hear what you have on your looms. I’m looking forward to putting linen on my drawloom–it may be the next warp! And more and more shafts each time. And M&O’s is one of my favorites, so pretty.

      Happy weaving,
      Karen

  • Geri Rickard says:

    P.S. Just wanted to say my drawloom is set up on the Glimakra I bought from your former weaving teacher. The one you learned on! I forgot her name but at the time I bought it she was in the Denver area and downsizing.

    • Karen says:

      Geri, how cool! You are weaving on the loom I learned on from Leigh? That’s a beautiful loom and such sweet memories for me. Oh, that was a special time with Leigh.

      Thanks for letting me know!
      Karen

  • Maggie Ackerman says:

    Hi Karen, we moved last month and after painting every room in our downsized house, I’m still at blacking boxes and trying to do something with the smaller yard. My loom room is a nice room in the basement and unpacking will be a winter thing. However, still on my baby wolf loom is a scarf from NZ possum merino that I kept on my much pared down look room to sell the previous house. Must’ve worked cuz it sold in 5 days! Somehow I’m looking forward to winter!

    • Karen says:

      Hi Maggie, I know how big a job moving is. You’ve got some restful times to look forward to after you get fully settled in. You will have so much fun setting up your new weaving space! No doubt that loom with lovely weaving was what sold the house! Congrats on your quick sell.

      Happy Weaving,
      Karen

  • Karen Reff says:

    What a great idea, to use woven bands for loom tools! I’m not a fan of weaving just to weave. There has to be a plan! Now, spinning…that’s different.
    Your drawloom weaving is going to be lovely. Enjoy!

Leave a Reply


Cutting Off a Failure

I made an embarrassing blunder. No wonder this Tuna wool resists all my efforts. It’s the wrong yarn! Tuna is 6/2 wool—twice as thick as the 6/1 wool I should be using. Cowboy Magic won’t solve this sticky problem. (I thought it would, as I expressed in this post: Tame the Wool.)

The yarn is gorgeous, but my frustration level is pushing me to throw in the towel. I tried hard to make this work. I was so convinced I had the right yarn that I missed it even when reader Joan left a gentle comment asking if 6/1 Fårö yarn would work (I’m sorry for not listening, Joan). There is nothing left but to cut off this failure.

Cutting off out of frustration.
Every shed is a struggle. It seems impossible to get a clean shed with this “sticky” yarn. (It’s not the yarn’s fault, though.)
Cutting off a failure. Ouch!
Failed piece is cut off. There are unwanted floats everywhere, and the fabric is like cardboard because of the tight sett.
Cutting off a failed double weave project. Ugh.
Bottom of the double weave has even more unwanted floats than the top layer.

In this lowest moment a thought occurs to me. Re-sley the reed. An ounce of hope rises.

Re-sleying to a coarser sett. Hoping for success.
Reed is changed from 50/10 metric to 40/10 metric. This spreads the warp an additional 19.9 cm (7 3/4″).
Wool for a double weave blanket. Second try.
Sleying is complete and the new reed is placed in the beater.
Wool warp for a double weave blanket.
Warp is tied on and leveling string is tightened. On your mark, get ready, get set…

I re-sley to a coarser reed and tie back on. I hold my breath and step on the treadles. It works. And it’s gorgeous!

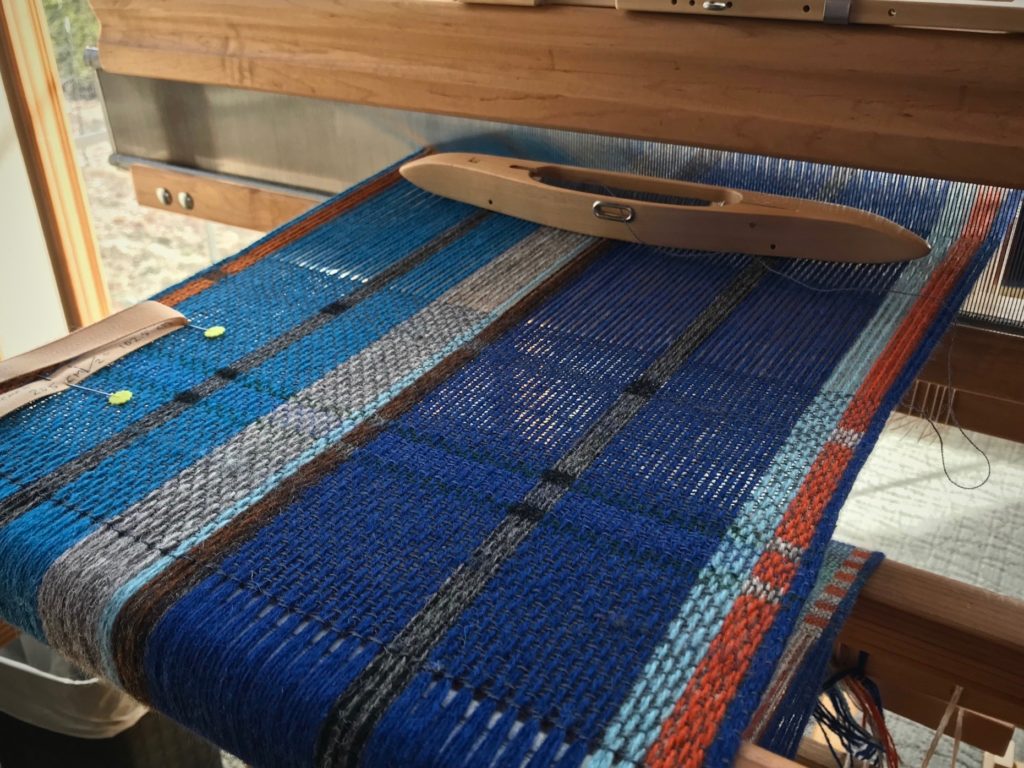

Double weave wool blanket on 12 shafts. Glimakra Standard.
Go! Night and day difference in being able to clear each shed.
Double weave at its finest. Wool blanket.
Double weave at its finest.
Weaving into the sunset!
Weaving into the sunset.
Double weave Tuna wool blanket on Glimakra Standard. Success!
Clean lines of double weave, with a (very) few unwanted floats that will be easy to fix later.
Double weave wool blanket. Success after starting over!
This is now a pleasure to weave!

Have you experienced great disappointment and loss of hope? Sometimes our own failure brings us to that point. The Lord makes things new. We come to Jesus with our failed attempts, and he exchanges our used rags of effort with his clean cloth of righteousness. In his forgiveness, the failure is cut off and removed. Our threads are re-sleyed and re-tied to make us gloriously new.

May you know when to cut off and start over.

Love,
Karen

8 Comments

  • Beth says:

    Where there’s a will, there’s a way! The “failure” would make lovely bolster pillows. We all make mistakes and move forward. The resleyed weaving is beautiful. I’m holding my breath about the project I’m about to start.

    • Karen says:

      Hi Beth, I thought about making a handbag out of the failed piece, but bolster pillows is another good idea!

      I came perilously close to pulling all the yarn off the loom and calling it a total loss. What stopped me was the beauty of the yarn itself. I just had to find a way to make it work.

      I’ll be looking for your brave project on IG.

      Thanks for your sweet encouragement,
      Karen

  • Betsy says:

    I’m glad you figured out what the problem was and got it fixed. The colors are so pretty!

    Looking forward to seeing you next week!

    • Karen says:

      Hi Betsy, Fortunately, most weaving problems are fixable…when we calm down enough to think it through.

      I’m looking forward to seeing you, too, at the CHT conference next week!

      All the best,
      Karen

  • Nannette says:

    Hi Karen,
    Very pretty lemonade.
    Thank you for explaining how to make a correction when plans need a little help.

    Kind regards,
    Nannette

  • Karen Reff says:

    It’s not fun when it’s happening, but oh, how good it feels to get everything straightened out! Good for you for sticking with it!

    • Karen says:

      Hi Karen, Thanks! I came awfully close to giving up altogether. You’re right, it feels terrific to get everything straightened out. At loom everything (or almost everything) is fixable.

      Karen

Leave a Reply


All the Looms

The plan to keep every loom dressed is easy when there is only one loom. Now that I have four floor looms, it’s a tough plan to follow. The drawloomcheck. The Glimåkra Standard, dressed in Tuna wool—check. The two smaller looms are threaded, and just need tying on and tying up. So, I’m well on my way! The end of the first warp on the drawloom is in view, however. That means the drawloom will soon be back in the queue. And so it goes.

Winding a warp for rosepath rag rugs. 12/6 cotton. Spring colors.
Winding a warp for rosepath rag rugs. 12/6 cotton. Spring colors.
Warp for cottolin towels.
Warp for cottolin towels is threaded on the little hand-built loom.

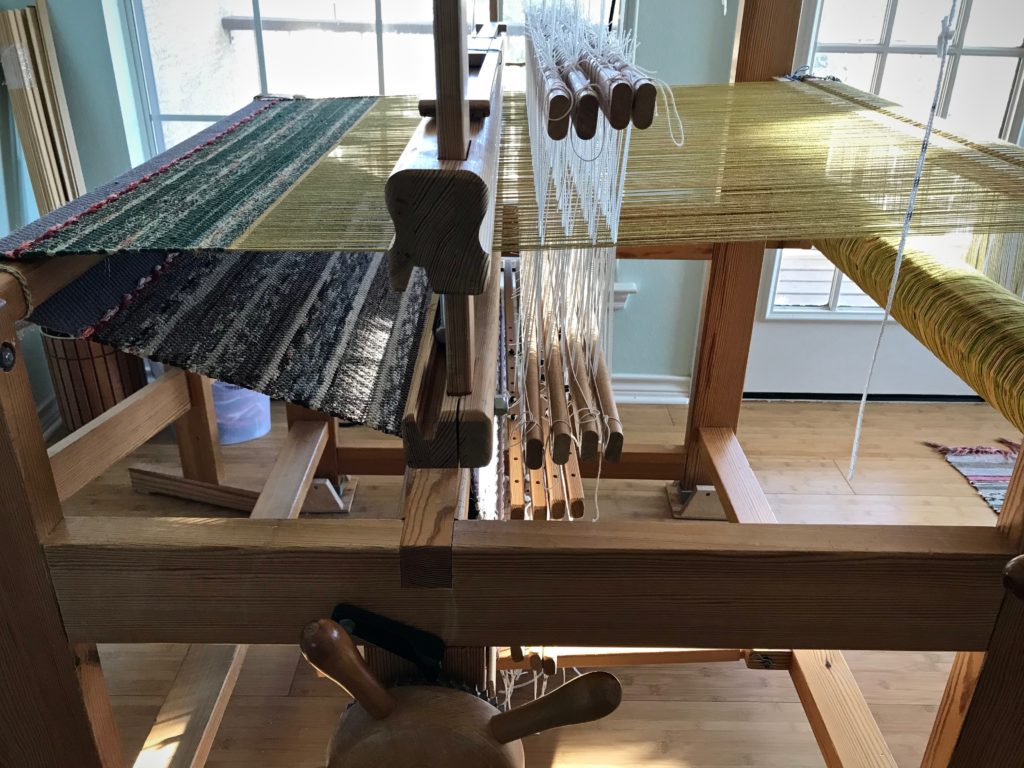

Opphämta on the drawloom.
Opphämta on the drawloom. Pattern weft is 6/1 Fårö wool. The right side of the fabric is seen underneath, as it comes around the breast beam.
Threading heddles on the Glimåkra Ideal.
Threading heddles on the Glimåkra Ideal.
Blue and Almond Tuna wool warp.
Blue and Almond Tuna wool warp is tied on in 1″ sections.

I like to stay a step ahead of my looms. I’m ready to wind a new warp as soon as I finish cutting off. It’s the cycle of weaving. But I have trouble staying ahead.

Tying up treadles on the Glimakra countermarch.
Twelve shafts. Twelve upper lamms. Twelve lower lamms. Twelve treadles. This is an amazing system.
Warp is tied on. Ready for rag rugs!
Warp is tied on. Ready to add the leveling string.
Loom is dressed for small wool double weave blanket.
Loom is dressed. Treadle cords are adjusted. Ready for weaving!

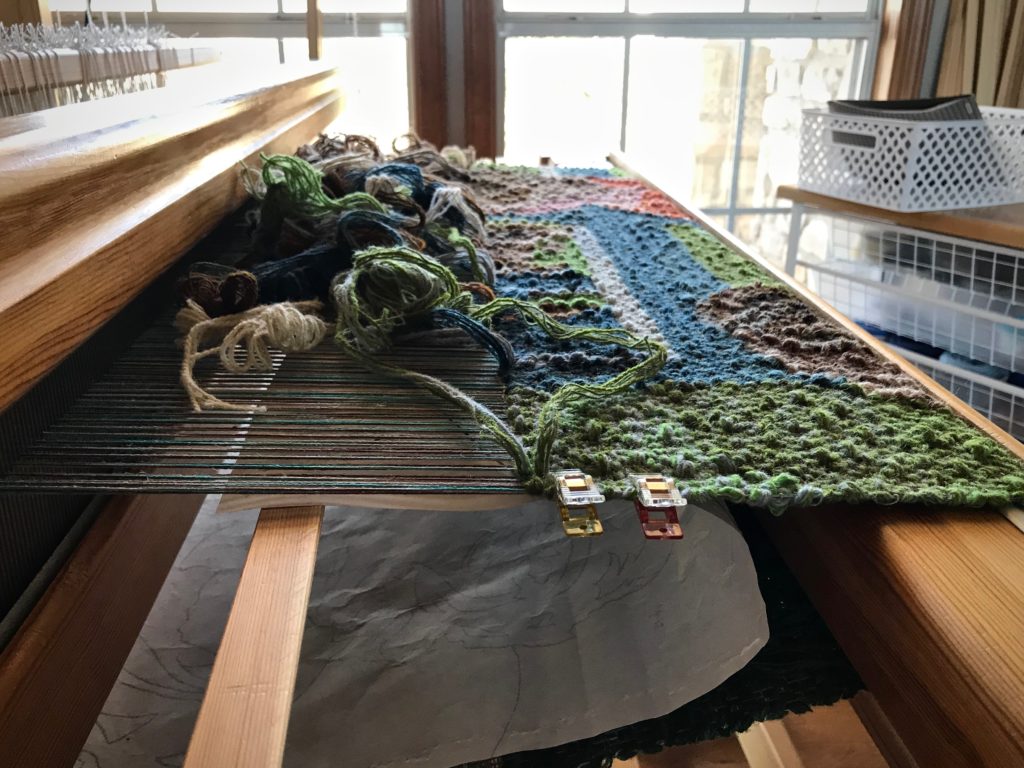

End of warp on the drawloom.
End of warp comes near the pattern heddles. This is my first drawloom warp, so I’m waiting to see how far I can weave until I lose a good shed. So far, so good.
My first drawloom warp.
Closing chapter of my first drawloom warp. I’ll keep “turning pages” until the shed disappears.

We have good plans for our lives. But often, it’s tough to follow those plans. Too many things happen at once, and we don’t know how to stay ahead of it all. The thing to remember is that our plans stem from our inner commitments. When we commit our ways to the Lord, trusting him, he leads us through our days. Trust turns plans into achievements. And those are the plans worth pursuing.

May your best plans succeed.

Happy Weaving,
Karen

15 Comments

  • Robin says:

    I love your posts. You are such an inspiration. And it is so evident you went to vavstuga, using the techniques she taught. Going there for the basics class was a little retirement gift to myself last year.

    • Karen says:

      Hi Robin, Going to Vavstuga Basics was one of my best moves. I learned things from Becky Ashenden that I use every day. I’m glad you’ve had the Vavstuga experience, too!

      Happy weaving,
      Karen

  • Beth says:

    Robin is right, you are an inspiration! Your work is impeccable and motivating. I have only two looms and can’t seem to get them going at the same time.

    • Karen says:

      Hi Beth, The truth about multiple looms is that you can only weave on one loom at a time.

      Now that all the looms are threaded I may focus on one loom at a time and weave it off. …unless I get distracted by another loom and decide to weave a little on it…

      Thank you for your kind words,
      Karen

  • Nannette says:

    Good morning Karen,

    About this time last year I warped up my homemade loom at the top of my skill set in rosepatth, then life got in the way. Last week I started a 6 week class at the Fiberwood studio near by. Chosen pattern is rosepath, to get my skills where they need to be (and girls night out with a friend).

    Such joy to know you have also chosen rosepath to show on your blog.

    God does provide to the ready student.

    Nannette

    • Karen says:

      Hi Nannette, I’m happy to hear you are interested in rosepath. Rosepath rag rugs are at the top of my list of favorite things to weave. It’s been way too long since I’ve had them on the loom.

      Happy weaving,
      Karen

  • Maria says:

    I just finished my first “ throw” . It was 46 wide in the reed. I had a terrible time keeping the edges and the floater broke a few times. Not my best weaving to say the least. How wide do you do your blankets and do you have any tips for weaving wide pieces? I would love to try the Tuna wool- what epi do you use for it?
    Thanks Karen!
    Maria Navarra

    • Karen says:

      Hi Maria, I know what you mean about facing challenges with a wide weave. I don’t use floating selvedges, so I can’t answer to that. I do use a temple. I find the temple helps me get consistent selvedges with wider widths. The weaving width of my biggest loom is 47″, and I have woven nearly that full width. Getting just the right tension on the warp is necessary, so that it’s just tight enough. If it’s a bit too loose, my shuttle wants to fall through.

      Here’s a page from Vavstuga’s website with a “recipe” for a Tuna wool blanket. I would go with that for a first time Tuna wool throw. It makes a terrific throw. http://store.vavstuga.com/product/yarn-borg-woo-tuna.html

      The one I have on the loom right now is double weave, and the sett is pretty dense, so it takes some patience and practice to make the wool open up with a decent shed.

      Happy weaving,
      Karen

  • Karen says:

    The last time I got both of my looms warped at the same time I took a photo….so I could prove I did it and so I could remember it….ha. Thank you for your encouragemment and inspiration, including a journey of faith.

    • Karen says:

      Hi Karen, Don’t forget it has taken me about 3 months to finally get all the looms (almost) dressed. Haha. There’s never a chance to get bored around here.

      All the best,
      Karen

  • Annie says:

    Good morning, Karen. Thank you for the inspiration regarding best laid plans.

    And the inspiration for weaving. I purchased a Megado recently and I am struggling with the follow through and putting it into use. Life does try to side track. However, I need to remember to hang onto the plan and trust in God.

    Hopefully, I will get to the Hill Country one day to visit.

    • Karen says:

      Hi Annie, We would be delighted to have you come for a visit!

      There are many things in life more important than dressing looms. I’m sure those are the things you are attending to.

      I have found that I can make it a practice to go to the drawloom every morning after breakfast, even if for a short time. And, it surprises me how those minutes add up over time and now I’m almost at the end of the warp. I think, How did that happen?

      All the best,
      Karen

  • Liz says:

    I am so blown away with how prolific you are with weaving! It takes me all day to dress my little Schacht! I am inspired watching your work! Thank You!!

    • Karen says:

      Hi Liz, It’s all one step at a time, little by little, day after day. It adds up. I think you’re doing quite well to dress your loom in a day!

      Happy weaving,
      Karen

Leave a Reply


Testing Color Surprises with My Little Helper

Twelve shafts and twelve treadles are all tied up. I found and fixed one threading error. And I am still making some adjustments on the tie-ups to get clean sheds. But for the most part, the Standard is ready to go! I have a week with this loom, to weave towels for my daughter. This colorful double weave looks promising.

My helper peers up at me as I tie on the warp.

My helper this week peers up at me as I begin to tie on the warp.

Dressing the countermarch loom.

Lower lamms and upper lamms are connected to the shafts before tying up the treadles.

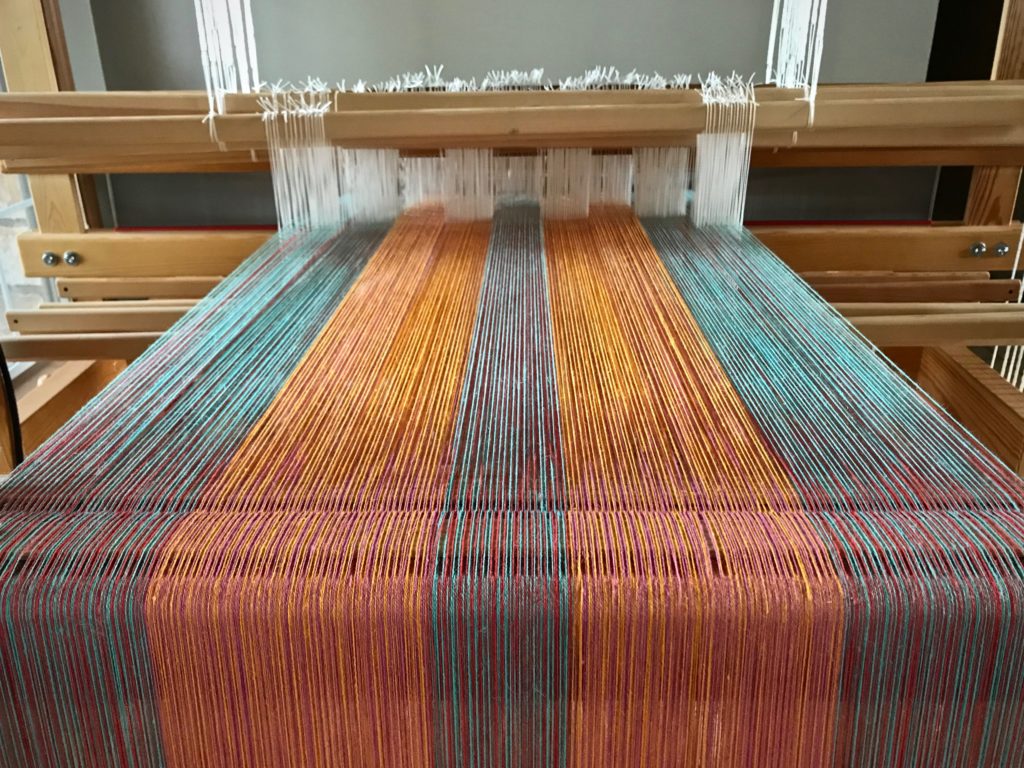

Glimakra Standard with twelve-shaft double weave.

Arrangement of the heddles on the shafts give a clue to the three blocks in this twelve-shaft double weave.

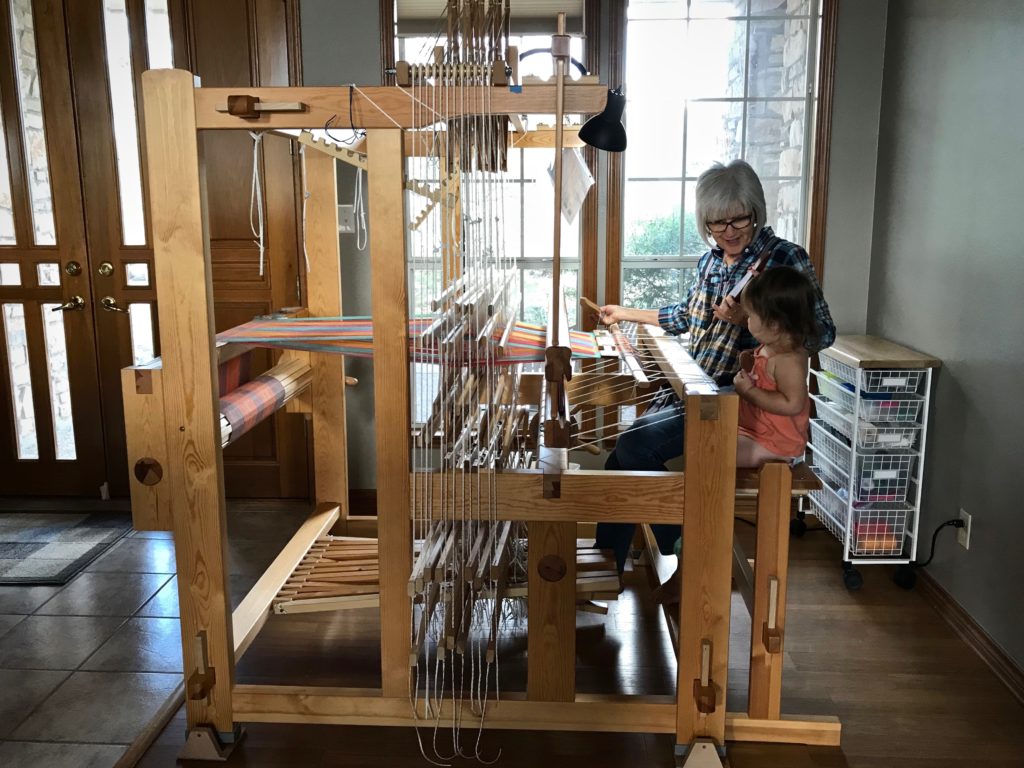

Weaving with my granddaughter at my side.

Testing weft colors and patterns with granddaughter Lucia by my side.

Helper for managing the shuttles at the loom. :)

Two-year-old Lucia helps manage the shuttles.

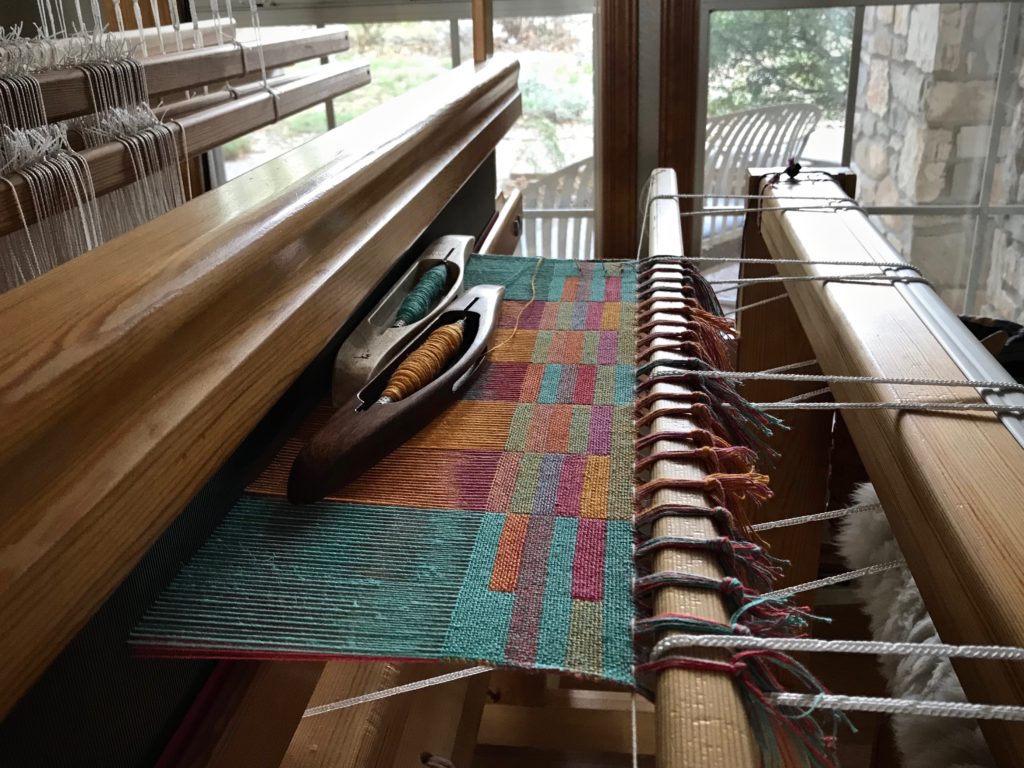

Double-weave towels on twelve shafts. Beginning sample.

Design decisions for the towels will be made based on this beginning sample.
It’s surprising to see the array of colors produced by only four shades of cottolin thread.

When the loom is properly dressed and prepared, the weaving is delightful. Every pick of color is a pleasant surprise. Our Father knows our needs. He is the loom dresser. Everything is set up for the threads to make gorgeous cloth. Do we think prayer is all about asking God our Father for things? Yes, he does invite us to ask for the things we need. But let’s start with admiring his ways and works, with a heart of gratitude. Then, with the threads he puts in our hands, the future looks promising!

May your looms be ready for weaving.

Happy weaving,
Karen

12 Comments

  • When God blesses us with variables your loom demonstrates I believe He not only wants to meet our needs but wants to bring joy to our souls. Some people weave tabby with their lives. Some people live their lives weaving lizards while exploring the subtle variations in the process. I believe God wants us to explore and enjoy all the good He has to offer and dresses our individual looms to do that..

    Yesterday our second grandchild arrived. He is as perfect as his older sister. A day such as that makes it easy to forget all the threads that had to be re-sleighed along the way.

    Blessings to all

  • Laura says:

    Love the pattern and colors….

  • Lynette Glass says:

    Can I weave something similar with four shafts? Do you have any four shaft doubleweave pattern ideas or books that you know about? I like your colors very much!

    • Karen says:

      Hi Lynette, You can certainly do double weave on four shafts. I don’t personally have much information on the topic, though. I do know that Jennifer Moore is known for her work in double weave and has a book and video about it, as well as workshops that she teaches.

      I chose colors that were not in my usual palette, and I’m pleasantly surprised at how much I like them.
      Happy weaving,
      Karen

  • Susie redman says:

    This looks stunning – the colours are so complementary. Are you managing this double weave on only one back beam?
    Susie

    • Karen says:

      Hi Susie, I have only one back beam, and I don’t know the first thing about weaving with a second back beam. Is double weave like this something for which a second back beam is useful?

      Thanks!
      Karen

      • Susie says:

        Hi Karen,
        I have only experienced double weave on a table loom and it was fitted with a second beam – one for each layer. My own loom is a Glimakra Standard too and I’m heartened to see that you can achieve double weave with one back beam. I had thought that it would be out of the question.
        Many thanks,
        Susie

  • Rebecca Neef says:

    This is so beautiful and inspiring. What an adorable helper you have! I have a Glimakra Standard also, a 120cm model. Mine only came (used) with 8 shafts, although it has 12 treadles. Is yours a special model made for 12 shafts, or did you do anything special to accommodate the extra shafts? I’d sure love to be able to do some 12 shaft weaves on mine! Thanks.

    • Karen says:

      Hi Rebecca, I was surprised that my little helper would sit there as long as she did. There was a lot to keep her attention, I guess.

      My loom (120cm) also came with 8 shafts. I wrote to Glimåkra USA and told them I wanted to upgrade to 12 shafts and they listed all the parts I would need to do that, and then I ordered the parts.

      I don’t expect that I’ll use 12 shafts very often, but it’s nice to have them for a few special projects.

      Happy weaving,
      Karen

Leave a Reply


When You Misread the Threading Draft

What if you finish tying up the loom, eight shafts and eight treadles, having beamed, threaded, and sleyed 2,064 ends, and the first thing you see when you step on the treadles is… that you misunderstood the threading draft? Do you undo everything and re-thread? Not likely, if it took you eleven-and-a-half hours to do the threading in the first place. I am taking a deep breath. Time to walk away and think. Maybe I can adjust the tie-up, or maybe I can use it as is—a serendipitous design. Should I laugh or cry? My idea to serve my loved ones with handwoven gifts (See Weaving a Gift) is getting off to a rough start.

Double weave throw. Warp is tied on.

Warp is tied on. Ready to tie up the treadles.

Tie-up completed for eight shafts and eight treadles.

Lamms are connected. Treadle cords are positioned. Treadles are tied up. Eight shafts and eight treadles.

Double weave throw.

This view should show solid dark plum all the way across.

Double weave throw on the loom.

This view should show stripes of solid colors, not two-color stripes, with solid bands of dark plum in between.

Serve. I want to offer my best, especially when I’m making a gift for someone dear to me. It helps to look beyond the person, though, and realize my true service is to the Lord. Heart, soul, mind, and hands. I bring my misunderstandings and missteps of the heart to my Master Weaver, who has taken it on himself to make things right. And I’m reminded that as I serve someone with my weaving hands, the true gift is love. This double weave throw will be a reminder of that.

May you recover from your mistakes.

Humbly,
Karen

UPDATE: I have had a chance to put the draft on Fiberworks weaving software and work with it to adjust the tie-up. I think I found a solution. Stay tuned!

6 Comments

  • Joann says:

    Karen
    Thank you for your words of encouragement on weaving and on life. It is true about the mis-steps we make. It is also true how Jesus is always willing to help us through these times.
    Joann

  • Nannette says:

    Good morning Karen,
    My son has gifts in the kitchen second to none. His food on the buffet always wows and amaze. The ONE cake we all remember and recount with much love is the tender, chocolate layer cake that fell apart in the refrigerator before it was served. He scraped the pieces into a large mixing bowl and served it in a bowl with ice cream. It was not his plan for the cake, but it was more memorable than had it been served exactly as he planned it.
    God amazes me by how things do not always turn out exactly as planned. Often they turn out better after the dust (or chocolate) clears.
    Nannette

    • Karen says:

      Hi Nannette, So true! When I looked at the mis-threaded version on my software, it did look interesting. Even more so, the back side of the fabric is very pretty. I haven’t quite decided whether to correct my error by changing the tie-up, or not. Or maybe settle with a version that is a combination of the two.

      Thanks for sharing your story. Our family has a similar fond memory with a cake my mother-in-law made. It became known as “Flop Cake,” and has been intentionally repeated as a favorite.

      All the best,
      Karen

  • Ruth says:

    Oh Karen, what a blow! But how quickly you are recovering and you didn’t take the scissors to your project showing wonderful restraint. This throw when finished will have good memories and an important story to tell. I’m looking forward to seeing your progress and learning of the changes you make. Onward with prayerful consideration.

    • Karen says:

      Hi Ruth, Yes, it is a blow when you are excited about throwing the shuttle, and you get stopped in your tracks. But no, taking scissors to it never crossed my mind. One thing I enjoy about weaving is that there are always solutions! It may not come out as planned, but there is a way around this obstacle. That I know.

      Thank you for your kind and encouraging words!

      All the best,
      Karen

Leave a Reply
