Tried and True: Five Steps for Rag Rug Selvedges and a Quick Tip Video

What do you look for in a handwoven rag rug? How do you detect quality of craftsmanship? I look at the selvedges. First thing. I look for selvedges that are nice and tight, and that have a uniform twist at the edge. A few simple steps, consistently practiced, produce the kind of quality you can see and feel. It’s one more reason I find delight in weaving rag rugs.

Rag rug selvedges. Short quick tip video.

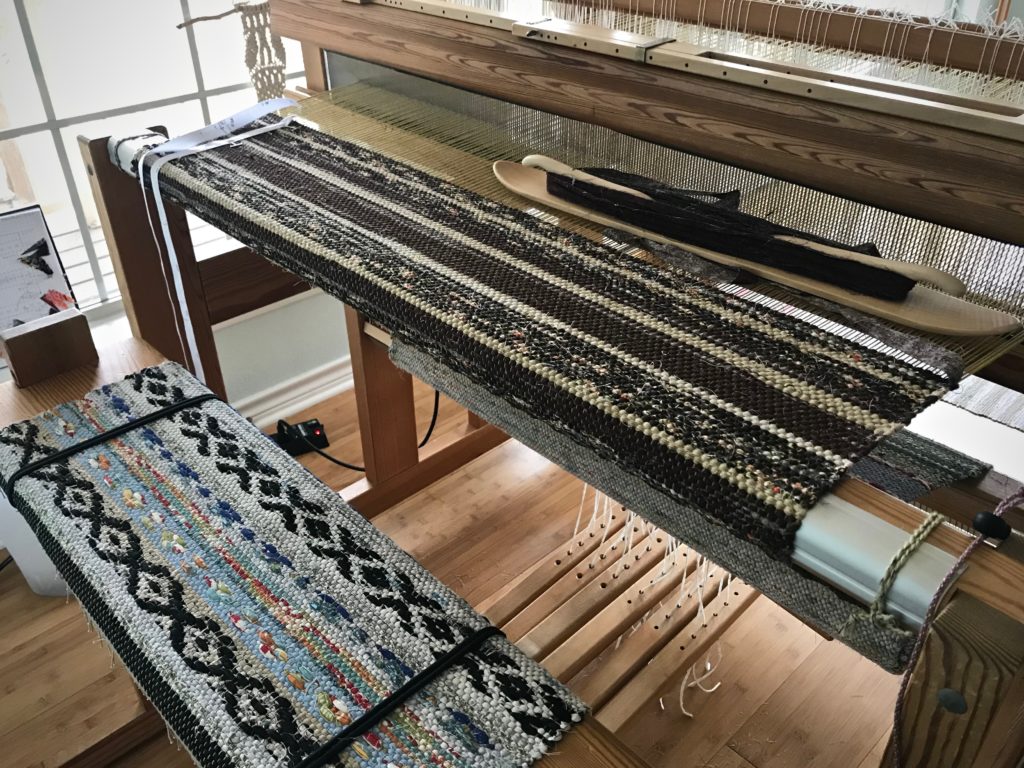

Rag rug selvedges. Weft is snugly wrapped around the selvedge warp ends.

Five Steps for Firm Selvedges on a Rag Rug

  1. Throw the shuttle, leaving a loop of the fabric-strip weft at the selvedge.
  2. Hold the weft out taut, and turn the weft under twice at the selvedge.
  3. Untwist the weft in the shed, straightening it, as needed.
  4. Pull the weft tight against the selvedge.
  5. Position the weft in the shed and beat it in.

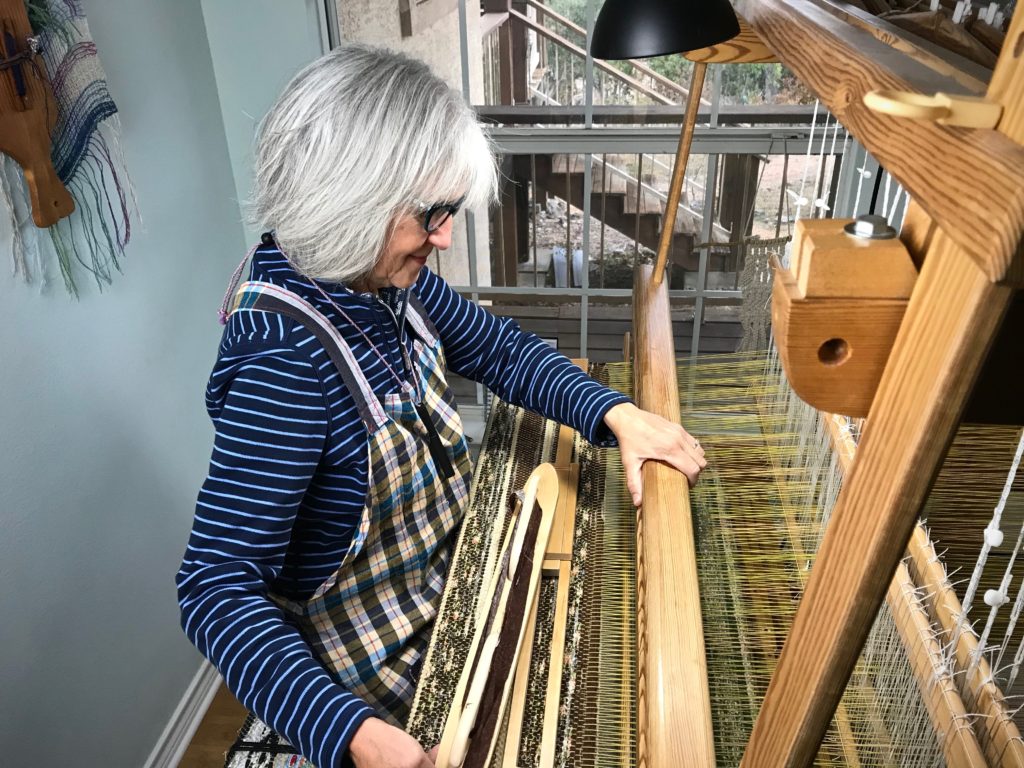

Weaving a rag rug. Tutorial video of a quick tip.
Beater swings forward to beat in the weft with its just-formed firm and tidy selvedge.

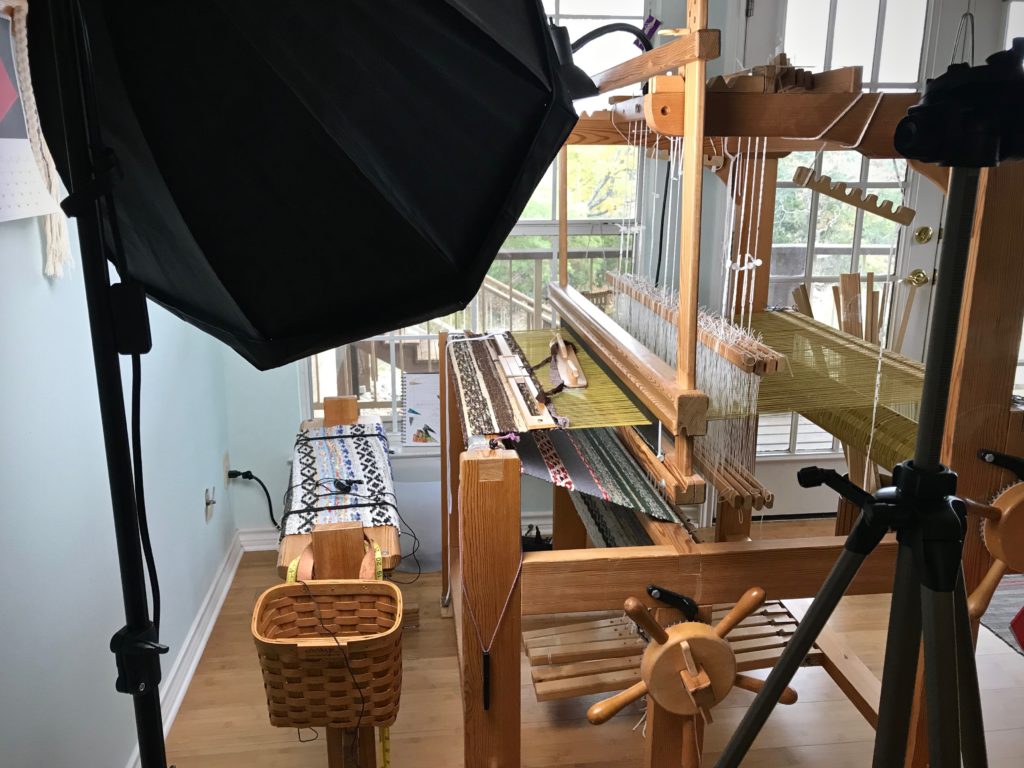

Filming a short video on weaving rag rug selvedges.
Set up for filming the short tutorial. My husband does the filming and proves his patience through several retakes.

Watch this Quick Tip video for a short demonstration.

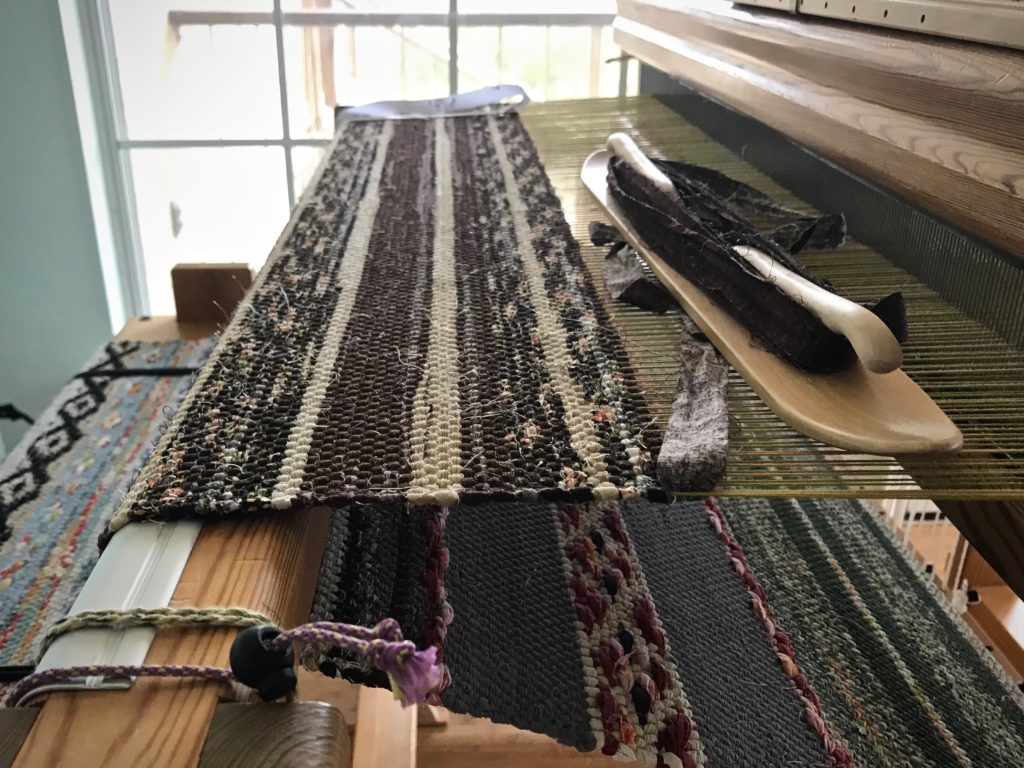

Rag rug on the loom. Tutorial about selvedges.

May the quality of your work be the first thing noticed.

Happy Weaving,
Karen

26 Comments

Leave a Reply to Karen Cancel reply

Process Review: Leftover Linen Waffle Weave Washcloths

This is the kind of weaving results that makes me giggle like a child. Waffle weave is one of those things I have been intrigued about for some time, and have wanted to give it a try. Will it really buckle up into waffled wrinkles? Will linen do that? Will it be even better than I expect? Yes, yes, and YES. Talk about transformation!

Using linen thrums for weft.
Taken from thrums, each length of thread is added with a square knot, which makes for slow quill winding. And slow weaving, as I untie each knot that comes along, and overlap weft tails in the shed.

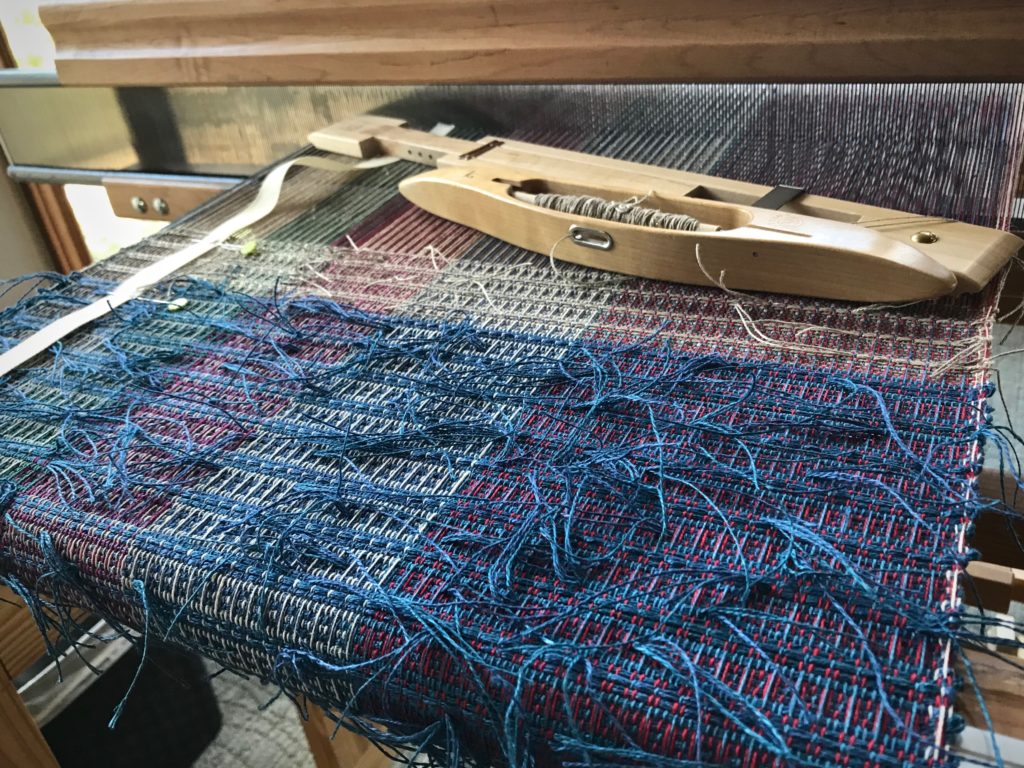

Made with linen leftovers. Weft tails cover the surface.
Shaggy thick blue linen weft tails cover the surface.

Everything in these waffle weave washcloths is linen that has been leftover from previous projects. The tail end of linen tubes, quills that didn’t quite get used up, thrums, and threading missteps that gave me skinny warp chains of several meters. The warp is 16/2 linen, but the weft is everything from fine linen threads, to bundles of threads, to coarse linen rug warp. I discovered, as you will see, that the thicker the weft, the more pronounced the wrinkles. The thickest wefts have given me delightful accordion pleats.

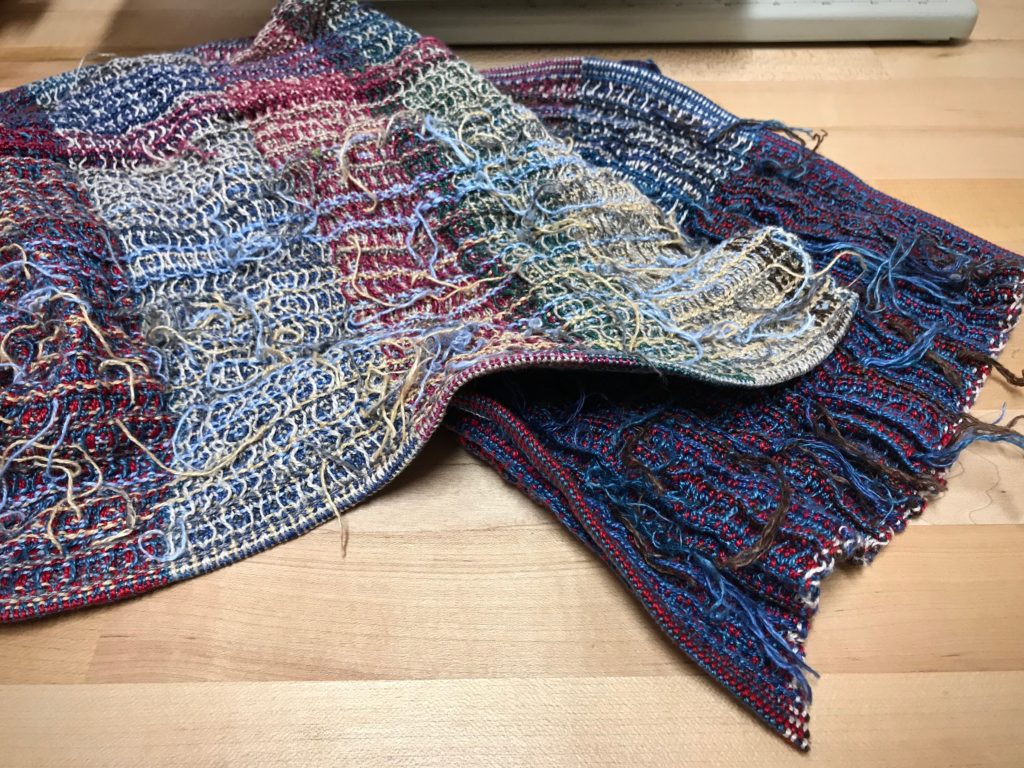

Waffle weave washcloths made entirely of leftover linen.
Wet-finished linen waffle weave has a surprisingly soft hand. After hemming, I am trimming the weft tails to 1/4″, leaving a hint that this is made of leftovers.

Please enjoy this process video of the making of leftover linen waffle weave washcloths! Watch to the end to see the squishiness of this unusual cloth.

Don’t think that this is the end of waffle weave. I am already thinking of all the interesting possibilities…

May your best wrinkles make you giggle.

Happy Happy Weaving,
Karen

18 Comments

  • Geri Rickard says:
    October 22, 2019 at 6:00 am

    I have been waiting to see the final results and they are super! What a cool idea!
    Enjoy using them, I’m sure they will feel wonderful!

    Reply
  • Elisabeth says:
    October 22, 2019 at 8:26 am

    I love that you made these beautiful washcloths out of “useless” material! I consider leftovers a precious resource, and I find so much joy in finding a purpose for them whether it’s yarn, thread, fabric, or food 🙂

    Reply
    • Karen says:
      October 22, 2019 at 8:55 am

      Hi Elisabeth, It’s satisfying to put some scraps back to use. I’ll save all my linen thrums again, and in a few years I’ll have enough to use them up again.

      Happy weaving,
      Karen

      Reply
  • Betsy says:
    October 22, 2019 at 9:25 am

    Those are great! I’ll bet they’ll feel great on your skin as well.

    I made waffle weave towels several years ago and loved how they came out. Unfortunately I gave them all away, so if I want some for myself, I’ll have to weave more. Maybe washcloths would be better. Or both!

    Reply
    • Karen says:
      October 22, 2019 at 9:52 am

      Hi Betsy, I made enough that I can keep a couple of them and use the rest as gifts. I would enjoy having this linen waffle weave as towels, or even bath towels.

      Thanks,
      Karen

      Reply
  • Joanne Hall says:
    October 22, 2019 at 9:32 am

    I too have saved my 16/2 linen thrums from my tapestry warps. This would be a fun project for making a couple bath towels. Thanks for the film.

    Reply
    • Karen says:
      October 22, 2019 at 9:54 am

      Hi Joanne, I can’t get myself to throw linen thrums away, so I was glad to have a way to use them up. Bath towels would be wonderful! I’m glad you enjoyed the film.

      Happy weaving,
      Karen

      Reply
  • Laurie says:
    October 22, 2019 at 10:48 am

    Very creative! I like the end result. Did you weave the hems in plainweave, and then fold over, or just fold over the waffle ends? I also like that you left ends as a reminder…..

    Reply
    • Karen says:
      October 23, 2019 at 8:27 am

      Hi Laurie, I did weave the hens in plain weave and folded them under twice. It turned out to be a very narrow hem. The little weft tails add an interesting touch, and makes the washcloths look a little…rustic. 🙂

      Thanks,
      Karen

      Reply
  • Linda Cornell says:
    October 22, 2019 at 10:59 am

    I’ve used waffle weave for baby blankets out of cotton and it makes a cozy blanket!

    Reply
  • Jenny Bellairs says:
    October 22, 2019 at 5:26 pm

    An interesting use of thrums.

    I’m wondering why you didn’t use a simple slip knot to join the pieces? It would make it much faster than untying square knots. I use them all the time if I have a break in my thread when winding bobbins.

    Reply
    • Karen says:
      October 23, 2019 at 8:46 pm

      Hi Jenny, A slip would work great for this. I like the square knot because I can tie it with less thread, and it makes a small knot. Also, surprisingly, it’s one of the easiest knots to untie.

      I just pull one end straight, and the other end slips off. That’s not the best description, but it’s a snap to undo a square knot…most of the time.

      Happy weaving,
      Karen

      Reply
  • Nannette says:
    October 22, 2019 at 10:15 pm

    Hi Karen,
    It was fun to watch the video. I wonder if a one of a kind scarf could be made with the hodge podge of thrums? Or, a gypsy skirt ala Stevie Nicks? LOL.
    Thank you.

    Reply
    • Karen says:
      October 23, 2019 at 8:49 pm

      Hi Nannette, A hodge podge of thrums would make a terrific scarf. I’d like a linen waffle weave scarf, in fact. Maybe next time.

      All the best,
      Karen

      Reply
  • Emily Lefler says:
    October 28, 2019 at 10:55 pm

    Wow! These turned out so fun! And I love the ki mark on the shuttle!!
    Love, Emily

    Reply
    • Karen says:
      October 29, 2019 at 5:34 am

      Hi Emily, Thanks for dropping by! I am thrilled with the way these turned out.
      Steve woodburns my initials on my shuttles and tools for me.

      All the best,
      Karen

      Reply

Leave a Reply to Karen Cancel reply

Process Review: Drawloom Jewels

It is exciting when Maverick walks by. Although he never comes in my drawloom studio, he does stop for a moment to look my way. You’ll see him in the slideshow video below. But what happens inside the studio is even more exciting, especially when it’s time for cutting off!

Drawloom with 16 pattern shafts.
Drawloom, set up with sixteen pattern shafts. I graph out the designs in Excel on my computer. Then, I print out the gridded pattern to use at the loom. I keep my place in the pattern with a magnet and magnet board made for cross-stitch embroidery.

This is Tuna wool, so I expect some shrinkage, but how much? I take careful measurements before and after wet finishing. Besides the main piece of fabric that I’m using for a garment, I have two sample pieces. I can experiment with the samples before wet finishing my garment fabric.

Here are my findings:
Sample 1. Hand wash and air dry.

10% shrinkage in width; 13% shrinkage in length.

Sample 2. Machine wash (3 minutes agitation on a gentle cycle, with a short spin) and machine dry (low setting) till damp, finish with air drying.

13% shrinkage in width; 14% shrinkage in length.

~How to do the shrinkage calculations~
First measurement (on the loom) minus the second measurement (after washing and drying) equals the difference. The difference divided by the first measurement equals the percentage difference.
For example, 50 cm – 43.5 cm = 6.5; 6.5 / 50 = 0.13; 13% shrinkage.

The first sample fabric is softer than the unwashed fabric, but not as soft as I’d like. The second sample fabric is beautifully soft, like a nice warm sweater. So, with confidence, I wet finish the garment fabric—with great results. It’s perfect for the fall/winter vest that I’ll soon be wearing, made from this fabric!

Wool garment fabric from a drawloom.
Like a sweater, this soft fabric will be comfortable to wear.
Making a pattern for handwoven garment fabric.
Muslin pattern for a simple vest. First, I’ll make a vest out of a wool throw, woven on my rigid heddle loom ages ago. Then, I will cut into the new drawloom fabric, with confidence about the fit.

Enjoy this photo show of the drawloom process.

May you enjoy the process you’re in.

Happy Weaving,
Karen

6 Comments

Leave a Reply to Karen Cancel reply

Weaving through The Big Book

It took me seven years of study, practice, and mistakes to complete this rigorous Swedish weaving curriculum! You have been with me through much of it right here. I’m talking about The Big Book of Weaving, by Laila Lundell. I made it through the book, sequentially, page by page, warp by warp. 43 warps in all! Remember the blue 12-shaft double-weave blanket I had on the loom in June? That is the final project in the book.

Handwoven double weave blanket. 12 shafts.
Double-weave wool fabric is ready for wet finishing, where it will be transformed into a soft, cozy blanket.

In the short video below, each completed project is presented in order in our Texas hill country home. Watch to the end to see the blue blanket in all its finished glory.

For nitty-gritty details, check out The Big Book of Weaving tab at the top of the page.

I. Secrets to success:

  • mindset of a student
  • determination
  • eyes on the goal
  • no option other than completion

One loom dedicated to the book.


II. Lessons learned:

  • technique
  • processes
  • planning
  • drafting
  • Swedish practices

Any mistake can be remedied.


III. Treasures gained:

  • patience
  • humility
  • endurance
  • focused attention
  • problem solving
  • creative freedom

Confidence.


IV. Prized perspectives:

  • new experiences
  • delight of dressing the loom
  • wonder of cloth-making
  • fresh ideas
  • joy of discovery
  • knowledge and understanding of the loom

Getting lost and absorbed in the whole process of weaving.

V. Favorite project: Old-Fashioned Weaving / Monksbelt (at 4:46 in the video)

Are we determined students of heavenly things? Oh, to know God’s will! Study what’s written, don’t lose heart, eyes on the prize, no option besides completion through Jesus Christ. One life dedicated to know him. Day by day, warp by warp, the Grand Weaver teaches us. We can know God’s will.

May you be a lifelong learner.

Happy Weaving to you,
Karen

38 Comments

  • Susie Redman says:
    August 6, 2019 at 4:15 am

    Well done. It’s such a great book. I’m picking and choosing from the book – its a great way to learn.

    Reply
  • Beth Mullins says:
    August 6, 2019 at 4:49 am

    Your work is so inspiring, Karen. I recall many of these projects, here and in Handwoven. Do you have a personal favorite? One that you’ll perhaps explore even further? Kudos!

    Reply
    • Karen says:
      August 6, 2019 at 6:03 am

      Hi Beth, Thank you so much! My personal favorite is the monksbelt piece—the large multicolor runner on the dining room table. And yes, I have monksbelt ideas that I would like to explore. Another one I’d like to play around with and learn more about is the turned rosepath—the long narrow red band. There are so many possibilities!

      Thanks for asking,
      Karen

      Reply
  • Geri Rickard says:
    August 6, 2019 at 6:07 am

    What a splendid presentation, Karen! You have accomplished so much, and each one is beautiful! Thanks for sharing, it was fun!

    Reply
    • Karen says:
      August 6, 2019 at 8:26 am

      Hi Geri, I’m glad you enjoyed the presentation. It was a lot of fun for me to put together, going back in time remembering all the projects.

      Thank you!
      Karen

      Reply
  • Betsy says:
    August 6, 2019 at 7:58 am

    Such a feast for the eyes!

    Reply
  • Cindy Bills says:
    August 6, 2019 at 8:10 am

    Wow and Wow! Such an accomplishment! And your lovely home showcases all those projects beautifully. Thanks for making this video and thanks for your encouragement. I’m currently doing the Jane Stafford online guild lessons with a new video lesson and project every five weeks. Sometimes it feels a bit overwhelming but I’m determined to try each one. I’ve already learned so much!
    Thanks again for your encouragement and dedication, both to your weaving and for sharing your weaving and faith with others. It DOES make a big difference to many.

    Reply
    • Karen says:
      August 6, 2019 at 8:33 am

      Hi Cindy, I know how you feel. Many times I was overwhelmed and even discouraged about completing this mammoth dream. Keep pressing on with your lessons, it WILL be worth it–I promise! And between the hard parts, I really had a lot of fun! So enjoy it, too.

      I really appreciate your encouragement to me. It means more than you know.

      Happy Weaving,
      Karen

      Reply
  • Annie says:
    August 6, 2019 at 8:18 am

    Hi, Karen! I remember that you recommended this book to me last July was exploring what loom to purchase for my first multi shaft loom. I ended up purchasing a small table loom, a Louet Erica Loom so decided not to purchase the book since I would not have the capacity to work many of the projects.

    However, I recently purchased a larger loom and now, I believe that I will purchase this book. Thank you for sharing this and tweaking my memory of your recommendation.

    Everything you make is so beautiful! You are a wonderful inspiration to a beginning weaver.

    Reply
    • Karen says:
      August 6, 2019 at 8:39 am

      Hi Annie, The Big Book of Weaving has been my tutor. I started with it as a complete beginner. It was written as a curriculum, so it has everything I needed to gain skill and confidence. I hope you find it a great resource for learning.

      Happy weaving,
      Karen

      Reply
  • Karen Simpson says:
    August 6, 2019 at 8:56 am

    That video is amazing. As I hadn’t found you then, I didn’t know that you were following this book and studying your way through it. What a lovely compilation of work and color. Thank you

    Reply
    • Karen says:
      August 6, 2019 at 9:06 am

      Hi Karen, Only a handful of people knew I was working my way through the book. I have mentioned The Big Book of Weaving here many times, but this is my first time to mention here on the blog that I was going through the book, step by step. I didn’t want too many people to “guess” what project I would do next… 🙂

      Thank you!
      Karen

      Reply
  • D’Anne says:
    August 6, 2019 at 12:00 pm

    Congratulations, Karen! I remember when you started working through The Big Book of Weaving, but I didn’t remember it had been 7 years. What a great learning experience! Did you use all the same yarns as the projects called for?

    Reply
    • Karen says:
      August 6, 2019 at 1:19 pm

      Hi D’Anne, It’s hard to believe it’s been 7 years, isn’t it? For most of the projects I used the yarns that were called for, but in colors of my choosing. I did change a few, though. For instance, two projects call for paper yarn. I didn’t know a good resource for that, so I substituted 8/2 cotton for one, and 16/1 linen for the other. So, for those I have beautiful scarves instead of room screens, which suits me better anyway.

      Happy weaving,
      Karen

      Reply
  • Joanna says:
    August 6, 2019 at 12:12 pm

    Karen, I’m speechless. There are no words for my admiration of not only your artistic vision, but also the incredible amount of work clearly visible in the lovely video. Thank you for all the encouragement and advice you’ve given us you worked through the Big Book. MORE happy weaving to you. Joanna

    (My v. Favorite piece of your is also that fantastic monks belt. I think you captured all the lovely colors of the Texas Hill Country. It couldn’t be more perfect.)

    Reply
    • Karen says:
      August 6, 2019 at 1:22 pm

      Hi Joanna, I’m fortunate to have a place where I can talk about things that I learn! Thanks for joining in!
      Every time I look at that monks belt piece, I get warm and fuzzy feelings. It’s so cheerful! I’m happy you like it, too!

      All the best,
      Karen

      Reply
  • kerimae says:
    August 6, 2019 at 1:20 pm

    You inspire me! As you know! 🙂

    Reply
  • Carolyn Penny says:
    August 6, 2019 at 2:11 pm

    Truly inspirational. Thank you for your diligence and following the goal.
    What a lesson in perseverance. Warm glow…… -Carolyn Penny

    Reply
  • Vida Clyne says:
    August 6, 2019 at 2:46 pm

    Congratulations on completing such an amazing and inspirational project. I love all the patterns and the lovely colours. I have not got the book but your lovely video makes me think I will buy it. Thanks for sharing.

    Reply
    • Karen says:
      August 6, 2019 at 4:14 pm

      Hi Vida, I am very happy to hear your thoughts about my adventure! This is one weaving book I wouldn’t do without. 🙂

      Thank you very much!
      Karen

      Reply
  • Gail Goodrick says:
    August 6, 2019 at 6:11 pm

    What an inspiration this is! Your work is wonderful. I love your color choices. Love, love love…

    Reply
  • Sue Blanding-Wilson says:
    August 6, 2019 at 7:27 pm

    So inspiring! I will look at my book with new eyes!

    Reply
  • Maria Hanson says:
    August 6, 2019 at 9:49 pm

    Wow! I so enjoy following your work, but seeing everything in one video is just amazing! Congratulations on such a major accomplishment!

    Reply
  • Nannette Piasini says:
    August 6, 2019 at 9:51 pm

    Penelope kept the suitors at bay for 10 years weaving one tapestry. What a remarkable legacy of a textile artist in 7 years!
    AND.. the hand wovens are not kept in a chest to pull out and admire. Basis the hems on the towels, they are being used. Beautiful!!
    Thank you for sharing. PS welcome back from your sabbatical.
    Nannette

    Reply
    • Karen says:
      August 7, 2019 at 7:41 am

      Hi Nannette, Thank you for noticing. Yes, the articles were made to be used, and they are used and enjoyed.

      It’s good to be back.
      Karen

      Reply
      • Anonymous says:
        August 8, 2019 at 7:22 pm

        One of the sweetest moments was when I saw one of my patched blankets worn to the point of being hand mended. Textiles will age one way or another. It fills my heart knowing the ones that pass through my hands are used daily.

        Reply
        • Karen says:
          August 8, 2019 at 10:04 pm

          That is sweet to think of your handiwork being used to the point of needing hand mending. I agree that the best handwoven items are the ones being used.

          Karen

          Reply
  • Cindy Buvala says:
    August 7, 2019 at 12:46 pm

    Wow! I am very impressed! A 10 minute video doesn’t do justice to the hours and hours of weaving work that precedes it. You are an inspiration! Thank you for sharing your talent.

    Reply
  • Karen Reff says:
    August 20, 2019 at 8:20 am

    I haven’t looked at that book in so long. I’m definitely going back for another look! I hope you realize what an amazing thing you’ve done!

    Reply
    • Karen says:
      August 20, 2019 at 8:31 am

      Hi Karen, I frequently go to the book for reference. It answers so many questions for me.

      I just took one step, and then the next step, and so on. I’m not sure I would have started had I known how long it would take me. But I’m very happy to have taken that first step…and so on.

      Thanks for your sweet encouragement,
      Karen

      Reply

Leave a Reply to Karen Cancel reply

Drawloom Cords and Handles

My first drawloom warp used ten pattern shafts, which was plenty. I have now installed the cords and draw handles for all fifty pattern shafts, so the sky’s the limit! (See Process Review: First Drawloom Warp)

Adding draw cords to the drawloom.
Adding draw cords. I stand on the foot beam to reach up to the top of the draw frame to pull cords through the holes.
Draw cords are added in order.
Draw cords are added in order.

Adding all these draw cords and handles is a big job. It involves a cord threader and scissors and time—reaching, going back and forth, measuring, cutting, tying. Over and over. It’s not hard, but it seems endless. Yet for some strange reason this job is entirely enjoyable. I feel like an architect and builder, a dreamer and investor. It’s incredible to step back and see the structure that this effort has produced. And this is merely the set up. Can you imagine the weaving prospects?!

This is how we build good structures in our lives. Intentional, persistent, focused. Listen well. Over and over. The way we speak makes a difference in the way we listen. When we speak with grace, seasoned for the hearer, we ready ourselves to listen. Our cord threader is our unselfish attentiveness to pull someone else’s thoughts and questions toward our understanding. With this beautiful structure we are ready for anything. Accomplished through the grace of God, the sky’s the limit!

Drawloom ready for weaving!
Drawloom with fifty draw handles, a sight to behold.

May your words be seasoned with grace.

Getting ready,
Karen

15 Comments

  • Beth Mullins says:
    June 18, 2019 at 4:37 am

    Looks so complicated!

    Reply
    • Karen says:
      June 18, 2019 at 5:45 am

      Hi Beth, I know it looks complicated. That’s what I always thought. I’ve been surprised to learn that it’s actually a series of simple steps to set this up.

      Happy Weaving,
      Karen

      Reply
  • Nannette says:
    June 18, 2019 at 4:55 am

    Oh, my goodness. The loom set up is a piece of sculpture. Precision. Symmetry one view. Asymmetrical from another direction. Soooo beautiful.
    Function that is a finely tuned instrument.
    Thankful for sharing.
    Nannette

    Reply
    • Karen says:
      June 18, 2019 at 5:46 am

      Hi Nannette, Yes, It is a piece of sculpture. A fluid sculpture. You’ve given it a beautiful description.

      All the best,
      Karen

      Reply
      • Nannettte says:
        June 24, 2019 at 1:53 pm

        At one o’clock this morning I finished weaving up the last of the rag on the overshot warp. The plan was to cut off the 3 rugs and re-tie the warp to use to explore tapestry as described in one of your more recent blogs.

        Curmugeon66 uses a stick to stabilize the woven edge until it can be machine hemmed. So… I pulled out a stick. Put it on the beater bar while I pulled the 3 rugs from the loom.. You know where I am going with this.

        By the time I heard the stick hit the treadles, hours of carpet warp had been pulled from the reed. It was hot and sticky and I was tired.

        This morning’s Sound Bites daily devotional title was ‘Paying Attention’.
        Today’s plan is to put a sewing machine hem on the rag rugs and pack them up to take to the future retirement home.

        There is nothing else to say… Well maybe “Praise God”

        Reply
  • Lynette says:
    June 18, 2019 at 9:07 am

    Please send more posts on how it works! Will be eager to see! Also, how wide of a Glimakra Standard Loom is needed to fit all 50 pattern shafts? (Minimum width) It looks like it will be fun.

    Reply
    • Karen says:
      June 18, 2019 at 9:59 am

      Hi Lynette, I will post my progress with this loom. My Glimåkra Standard is 120cm (47”), but I think this same draw frame fits on a smaller Standard or Ideal—maybe 100cm (39”). Someone who knows for sure can comment on this to verify.

      It will certainly be fun! That I know.

      Happy Weaving,
      Karen

      Reply
  • Arlene Favreau-Pysher says:
    June 18, 2019 at 9:23 am

    I love the spiritual aspect of weaving and being that listener…. and incorporating the other person into our being …thank you for your post. Arlene

    Reply
    • Karen says:
      June 18, 2019 at 10:03 am

      Hi Arlene, Thanks for your thoughtful words!

      I’m so grateful for the Lord’s grace to show us how to make others more important than ourselves.

      All the best,
      Karen

      Reply
  • Annie says:
    June 18, 2019 at 12:19 pm

    That whole set up just boggles my mind! Nannette’s description is perfect!

    Hopefully, I will have an opportunity to come see this in person one day, Karen.
    In the mean time, I am looking forward to some videos of you weaving with this.

    50?! I really don’t know if I could keep that all straight!

    Reply
    • Karen says:
      June 18, 2019 at 7:11 pm

      Hi Annie, It’s my hope to make some short videos of the drawloom. Thanks for the prompt.

      Yes, 50 pattern shafts. That means 50 handles to pull. The more, the merrier!

      All the best,
      Karen

      Reply
  • Judy says:
    June 18, 2019 at 2:30 pm

    Karen thank you for your posts on the drawloom. I have an old countermarche loom that I would love to build a drawloom for. I find this very interesting and can’t wait to see what you do with it. I have taken a basic drawloom course. You have inspired me to get started.

    Reply
    • Karen says:
      June 18, 2019 at 7:13 pm

      Hi Judy, How wonderful that you are dreaming of building a drawloom for your countermarch! Dreams are where the action begins!

      Happy Weaving,
      Karen

      Reply
  • Keri Mae says:
    June 19, 2019 at 6:39 pm

    Beautiful post!

    Reply

Leave a Reply to Karen Cancel reply
