Tools Day: Temples

Draw-in happens. It is a natural part of weaving. Sending a weft thread across the warp, weaving over and under, naturally pulls the warp threads closer together–this is draw-in. But excessive draw-in ruins selvedges, causes warp ends to fray and/or break, and wastes time because it creates problems. The width across the fell line needs to be the same as the width of the warp in the reed. If the cloth is narrower at the fell line, there is abrasion on the outer warp ends from the reed, as the beater comes to the cloth.

Two things work together to help prevent excessive draw-in:

1) Angling the weft. Placing the weft across the warp at an angle adds extra length to the weft, which helps to accommodate for the natural draw-in.

2) Using a temple (stretcher). The purpose of a temple is to maintain consistency in the width of the cloth. It does this by “stretching” the cloth out, holding it in place with little spikes on each end of the tool. Moving the temple frequently uses the tool to its best advantage. I move mine about every inch of weaving. For more instruction on how to set a temple, please see one of my most popular posts, Tools Day: Temple Technique.

I weave with a temple more often than not. The temple must be set properly, to the precise width, so I have several sizes in my growing collection of temples. Sometimes it works to combine two different sizes to get the measurement that is needed.

My first temple was a make-do tool that I used with my rigid heddle loom on lightweight weaving. It is not adjustable, so it only works with one specific warp width.

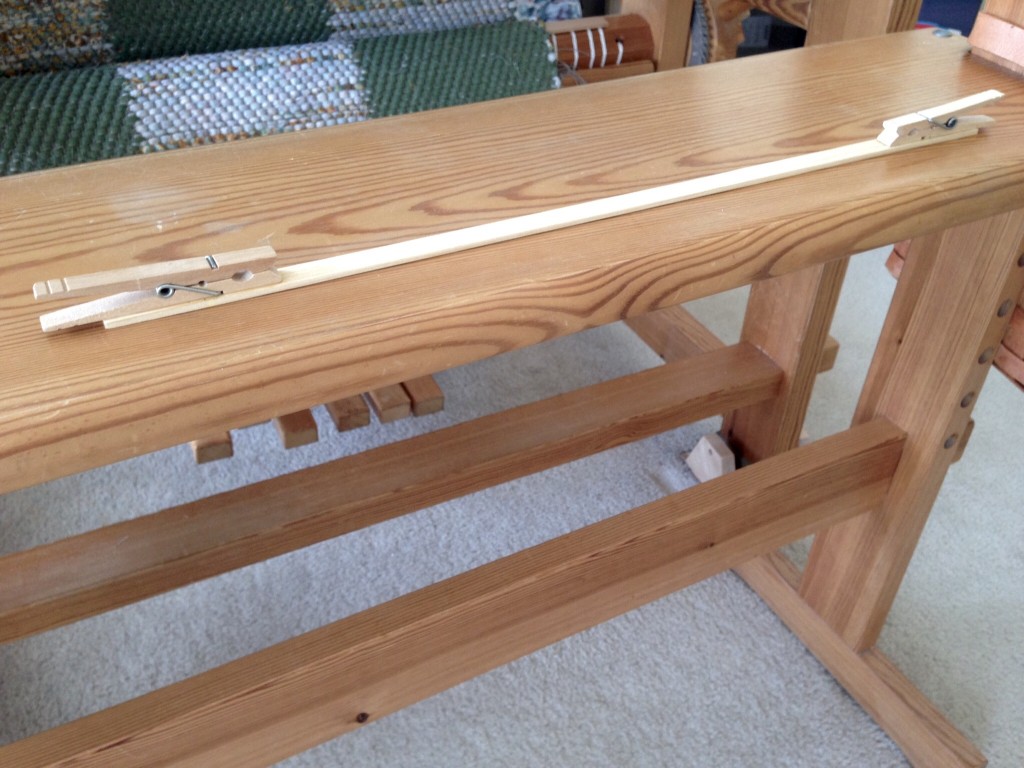

Make-do temple for a rigid heddle loom.

Slat with clothes pins glued on the ends makes a simple lightweight temple for a rigid heddle loom.

My wooden temples are from Glimåkra. They serve me well, and are the ones I use most often. Since they are adjustable, they cover a wide range of possible widths.

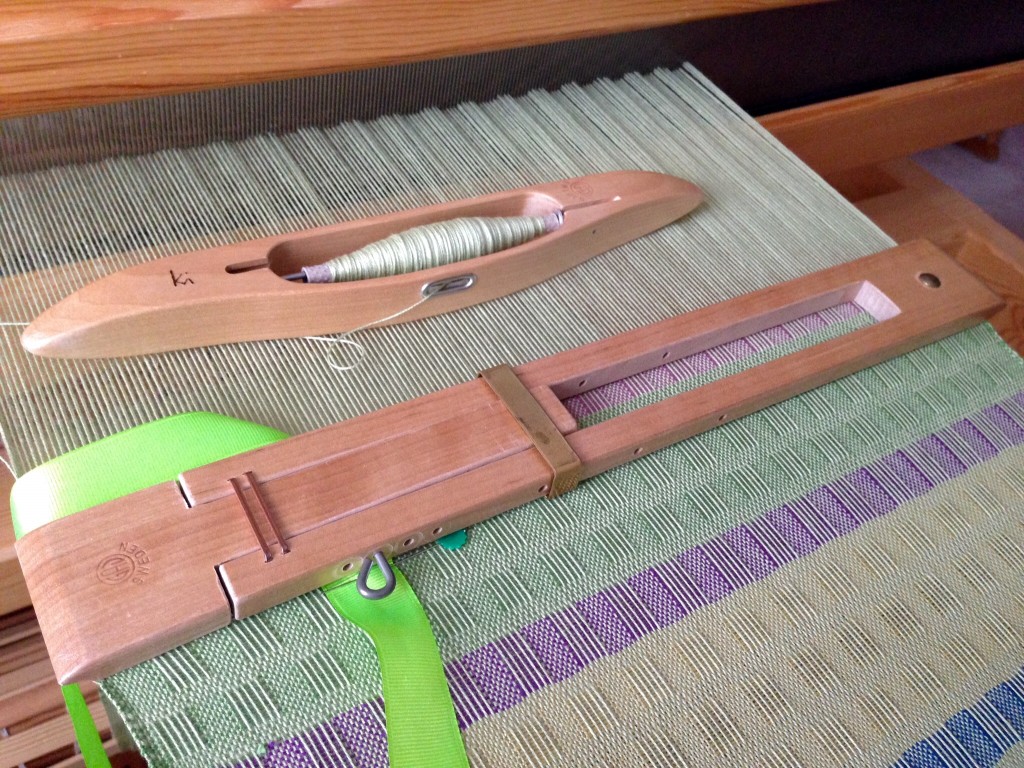

Wooden temples (Glimakra) for weaving.

Wooden temples (mine are Glimåkra) work well for any type of weaving.

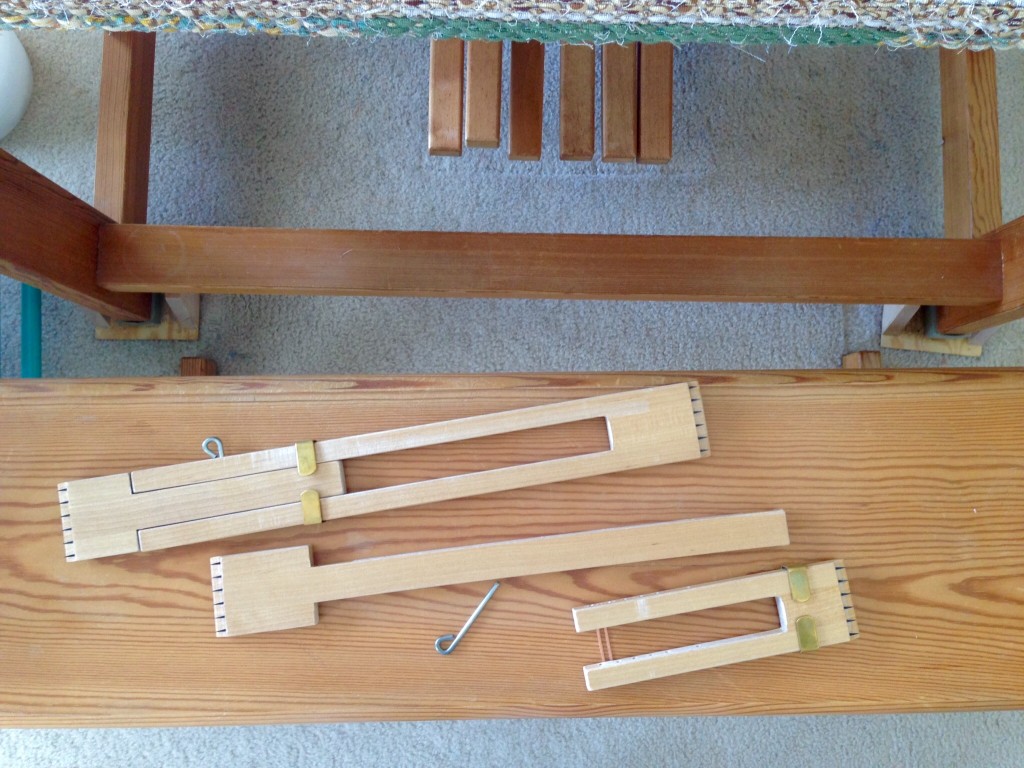

Switching parts to two sizes of temples. Info about temples on the blog.

Switching parts on two different sizes of temples can increase the range of possible sizes. And, yes, some of my temples have an extra hole, added by my husband, to increase the range of the temples’ adjustability.

Tips for using a temple!

Perfect width of temple for this cotton lace-weave scarf found with combination of two different sizes.

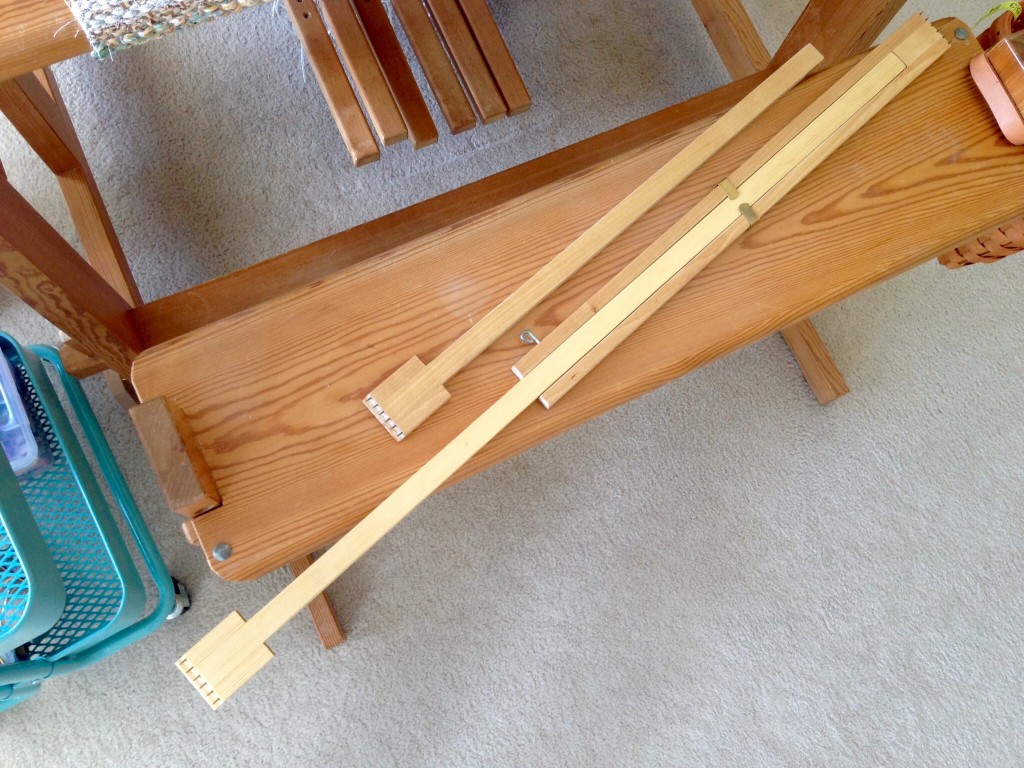

Handmade extension for temple. Temple tips...

Steve made an extension for my longest temple when I needed a really l-o-o-o-o-ng temple. He used finishing nails for the little spikes. It’s perfect!

The metal temples are heavier, with thicker teeth, and work well for coarser weaving, especially rugs.

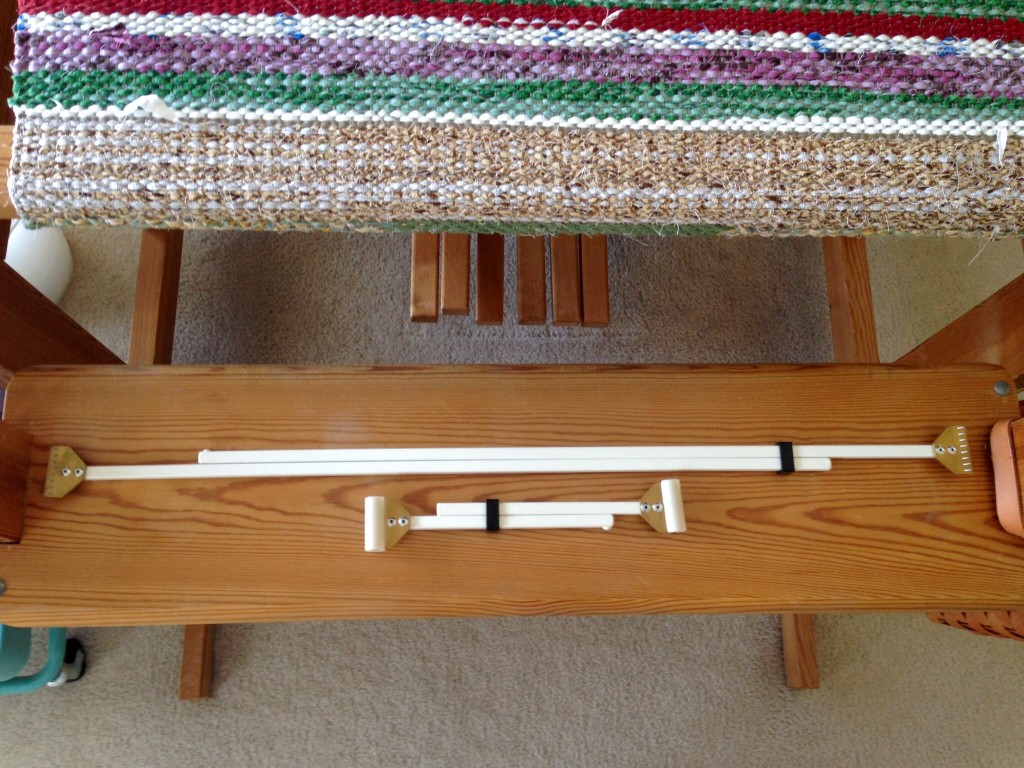

Metal temples for weaving, especially rag rugs.

Metal temples work well for weaving rugs. Like the wooden temples, these also have interchangeable parts, which can extend the range of possible widths.

Temple in place in scrap weft between rag rugs. Temple tips.

Temple is set in the scrap weft between rag rugs. Ready for the start of another rag rug!

May your selvedges shine, and your broken ends be few.

Happy Weaving,
Karen

7 Comments

  • John O'Shaughnessy says:

    I have a temple / draw-in question. I’m weaving towels using 8/2 cotton at 18 epi. I’ve been using a wooden temple from Glimåkra similar to yours. I match the temple width to the width of the warp in the reed. I’ve been throwing the shuttle leaving a bubble, changing shafts, and then beating. Things start out fine but as the weaving continues the draw-in continues to get worse so that I have to abandon the temple as I’ve run out of adjustment. Then I attach weights to the selvedge edges to try and keep the draw-in in check. The edges get compressed looking. If I’m using colored weft with a white warp the edges even turn white as things get tighter there. Maybe I need to get another wooden temple and substitute the smaller one as I continue weaving after the first one runs out of adjustment. It’s just a lot of draw-in.3″ in a 20″ width measured in the reed. Help!
    Thank you,
    John

    • Karen says:

      Hi John, just know you’re not alone. Most weavers have struggled with the same things you describe; at least I know I have.
      I think you will resolve the problem if you leave more weft in the shed. Instead of a bubble, put the weft at a 45 degree angle. I suggest doing some sampling, and experiment with the weft. See what happens if you increase or decrease the angle, and find the optimum angle that keeps your weaving at the width that matches the warp in the reed.
      The problem with adjusting the temple, or changing to a smaller size temple, is the outer warp ends will get too much abrasion from the reed. 8/2 cotton may be able to handle that, but if you weave with something finer, or more delicate, like linen, your ends will break like crazy. Ask me how I know. 🙂
      Any other words of advice from my weaving friends here? Please leave your suggestions, too.
      All the best,
      Karen

  • Sue Hommel says:

    I find I get the best selvedges by beating the weft with an open shed as well.

  • linda says:

    It takes a little practice, but you can prevent draw in by
    ! throw the shuttle at a 30-40 degree angle.
    2, insert your pointer finger in the shed 3-4 warp threads
    3.grasp the edge,between your thumb and pointer finger
    4. flick your wrist away from the weaving
    5. take your feet off the pedles and beat.
    If you find one edge is not as nice as the other slide your butt to the not so good side just a little. It works every time and you don’t have to rely on another “gizmo” to get perfect edges, linda

  • John O'Shaughnessy says:

    Thanks everyone for the helpful suggestions. I really appreciate it !
    John
